P. 4

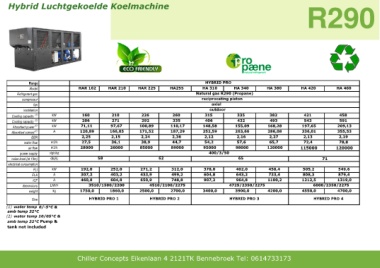

Hybrid Luchtgekoelde Koelmachine
                                                                                                                                         R290


















                                                                                            HYBRID PRO
              Range
              Model                 HAR 162      HAR 210      HAR 225       HA255          HA 310        HA 340        HA 380         HA 420          HA 460
                                                                                        Natural gas R290 (Propane)
         Refrigerant gas
                                                                                          reciprocating piston
           compressor
                                                                                               axial
                fan
                                                                                              outdoor
           installation
      Cooling capacity   (1)  kW     160          210           226          260            315           335           382             421            458
      Cooling capacity   (2)  kW     206           271          292           335           406           432            493            543            591
       Absorbed power  (1)  kW       71,11        97,67        100,89        110,17        148,58        155,09         168,28         197,65          209,13
      Absorbed current  (1)  A      120,89        166,05       171,52        187,29        252,59        263,66         286,08         336,01          355,53
               EER                   2,25         2,15         2,24          2,36           2,12          2,16          2,27           2,13            2,19
            water flow  m3/h         27,5         36,1          38,9         44,7           54,2          57,6          65,7            72,4           78,8
             air flow   m3/h         28000        26000        85000         89000         95000         98000         120000         115000          120000
          power supply  v/ph/hz                                                               400/3/50
      noise level (at 10m)  db(A)           58                         62                                  65                                   71
     electrical consumption
                FLI     kW           192,0        252,0        271,2         312,0         378,0          402,0         458,4          505,2           549,6
               FLA       A           307,2        403,2        433,9         499,2         604,8          643,2         733,4          808,3           879,4
                ICF      A           460,8        604,8        650,9         748,8         907,2          964,8         1100,2         1212,5          1319,0
           dimensions  L/W/H            3510/1500/2200             4510/2100/2275                      4725/2350/2275                       6000/2350/2275
              weight    kg          1750,0        1860,0       2500,0        2700,0        3400,0        3900,0         4200,0         4550,0          4700,0
                                        HYBRID PRO 1               HYBRID PRO 2                        HYBRID PRO 3                         HYBRID PRO 4
               Size
    (1) water temp  0/-5°C &
    amb temp 32°C
    (2) water temp 10/05°C &
    amb temp 32°C Pump &
    tank not included






                                   Chiller Concepts Eikenlaan 4 2121TK Bennebroek Tel: 0614733173
